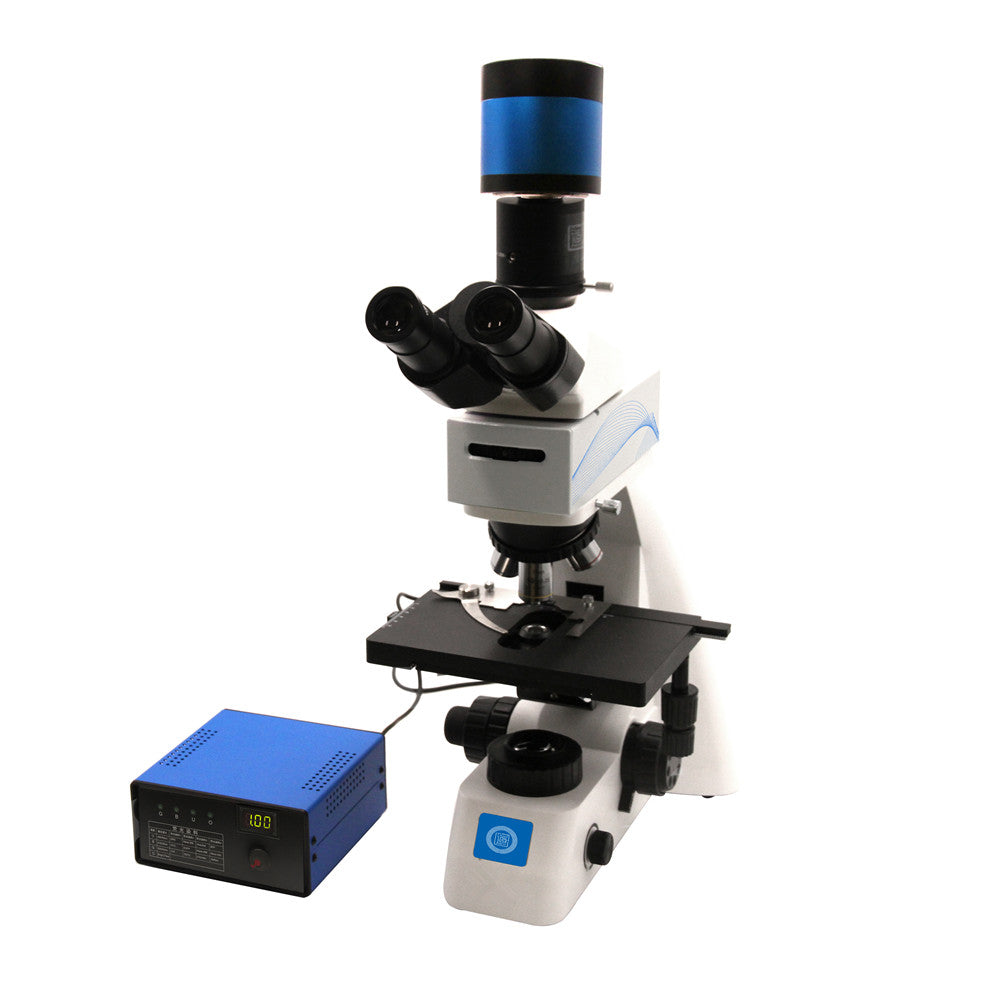

Upright Fluorescent Biological Microscope FUZB70F

1.Optical system: Excellent infinite chromatic aberration correction optical system;
2. Objective lens turntable: 5-position backward tilting ball internal positioning objective lens turntable, non forward tilting, convenient for objective lens conversion;
3. Triocular lens tube with adjustable focal length and C type interface;
4. Equipped with flat field achromatic objective lens: 4x/0.10; 10x/0.25； 20x/0.40； 40x/0.65 (spring); 100x/1.25 (spring, oil mirror);
5. Coarse micro coaxial focusing with locking and limiting devices, micro grid value: 2 μ m;
6. The 6-stage is a self-supporting structure that avoids the risk of injury from collision with traditional stage supports. The stage is designed with rounded corners to prevent injury; Double layer mechanical mobile platform (size: 210mmX140mm, movement range: 75mmX50mm), adjustable height lifting range ≥ 23mm;
7. There is an integrated handle on the back of the body, making it easy to move and safely transport the microscope;
8. LED transmission light source, white cold light source, energy-saving and environmentally friendly, in line with human observation habits, color temperature 4000k, lifespan greater than 20000 hours;
9. Kohler Illumination System with Transmitting Light;
10. Abbe spotlight N.A.1.25 can be raised and lowered up and down;
11. High power long-life LED fluorescent light source, which can be turned on and off without affecting its performance, with a lifespan of more than 20000 hours and continuously adjustable brightness. It includes a light source indicator light and can display intensity digitally;
12. 4-hole fluorescent turntable excitation position, equipped with three sets of excitation filter blocks as standard, all fluorescent filter blocks can be customized:
Ultraviolet (UV): EX360/50nm; DM:400nm;EM:450nm/50nm.
Blue (B): EX475/40nm; DM:500nm;EM:530nm/30nm.
Green (G): EX525/50nm; DM:560nm;EM:590nmLP.
13. Research grade sensitivity refrigeration camera IC2000:
Chip model: CMOS Exmor R roller shutter shutter;
Chip size: 1 inch;
Pixel resolution: 5440 * 3648 ≈ 20M;
Pixel size: 2.4 * 2.4um;
Exposure time: 0.1ms~1h;
Refrigeration method: Double stage cycle thermoelectric refrigeration system, below 50 degrees Celsius below ambient temperature.

14. microscope imaging professional processing software:
The setting module can set the settings for microscope image acquisition, including selecting dyes, fluorescence module, and objective lens magnification. It can be manually measured and the magnification mapping relationship of the collected images can be added;
The acquisition module is mainly used to capture images taken by the microscope. Parameters can be set for acquisition. Before acquisition, the camera list can be viewed, resolution, exposure and gain, white or black balance, color adjustment, bit depth, color mode, image flipping, image rotation, fluorescence module, and shooting magnification can be set. After setting the parameters, the acquisition operation can be carried out;
The browsing module can browse images on the computer. In the browsing interface, you can browse private formats captured by the local camera, set the camera's shooting location and preference folder. After setting the shooting location, the default saving path for the captured images is in this folder. When no shooting location is set, the captured images are saved on the desktop by default; When clicking on an image, detailed information about the image can be displayed, and multiple images can be selected for overlay;
The processing module can mainly perform a series of operations on graphics, including adding annotations. Annotation types include text, arrows, ellipses, rectangles, images, scale bars, and lines. Standard scale bar styles can be set, and annotation fill colors, font colors, widths, etc. can be set. Enhancement processing can adjust the color, brightness, direction, etc. of images;

Basic Configuration:
1. FUZB70F host
2.5-position objective lens turntable (integrated host)
3. One eyepiece tube
4. Two 10X eyepieces
5. Flat field achromatic objective lens 4X 1
6. One 10X flat field achromatic objective lens
7. One flat field achromatic objective lens 20X
8. Flat field achromatic objective 40X 1
9. One 100X flat field achromatic objective lens
10.4 Hole position fluorescent turntable, containing 3 sets of fluorescent filter blocks
11. One fluorescence control power supply
12. Camera IC2000 1 piece
13.1X camera C interface 1
14. One power cord.
