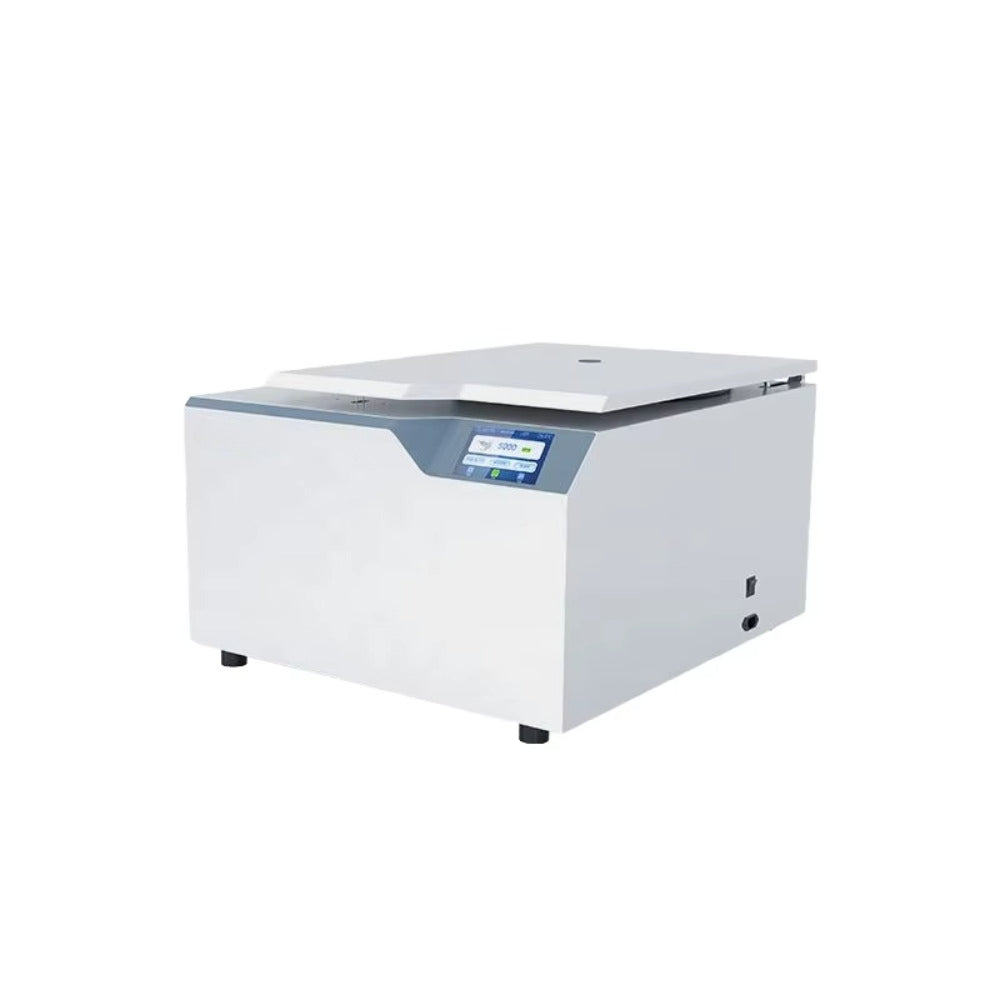

Table Top 16000rpm High Speed Refrigerated Centrifuge

Table Top 16000rpm High Speed Refrigerated Centrifuge

$1,799.00 USD
$1,799.00 USD
Sale Sold out

Features:

  • Adopts CFC-free compressor unit and environmentally friendly refrigerant R404a, with a wide temperature range: -20℃~+40 ℃, temperature adjustable during running. With refrigeration function, quickly lowing to set temperature. With standby cooling function, the set temperature can be maintained in standby state.
    * Whole metal structure and multi-layer explosion-proof, safe and durable, to ensure the safety of operators.
    * Rotors are made of high-strength aluminum alloy and can be disinfected at high temperature and pressure.
    * Embedded microprocessor control, DC brushless motor drive, maintenance-free, good shock-absorbing, stable operation.
    * 5-inch LCD touch screen, real-time display of all parameters, the operation interface is intuitive and simple.
    * Electromechanical integration door lock, safe and reliable.
    * Integral food-grade silicone sealing ring is used to avoid aerosol overflow and ensure the safety of operator.
    * With self-test, blocking, over-speed, over-temperature and other alarm functions, excellent shock-absorb, the motor runs smoothly.
    * 100 groups of user-defined programs, easy to use common programs, boot for the last program.
    * 10 kinds of accelerations are available, fast acceleration.
    * Equipped with a variety of rotors and adapters, suitable for 0.2ml-100ml centrifugal tube; It is multi-purpose machine.
Model FUZ-TH16RC
Max. Speed 16000rpm
Speed Accuracy ±20 rpm
Max. Speed 21695×g
Max. Volume 4×100ml
Refrigeration System CFC-free compressor, R404a
Timing Range 1min-99h59min/Continuous/Short-span
Temp. Range －20℃～+40℃
Temp. Accuracy ±1℃
Noise ≤65dB
Power Supply AC220V, 50/60Hz
External Size 606×572×361mm
Package Size 700×670×560mm



Available Rotor for chosen. Before placing order please get rotor quotation.

Rotors for FUZ-TH16RC
NO. Rotors Type Volume Max. Speed(r/min) Max. RCF(×g) Adapters
16M0003 Angle Rotor 8×7ml 14000 16435
16M0004 Angle Rotor 12×10ml(Low Speed） 6000 3743 2/3/4/5/7ml blood collection tube、5ml、7ml、10ml(▲)
16M0005 Angle Rotor 12×10ml（High Speed） 12000 14328 1.5ml、5ml
16M0006 Angle Rotor 12×1.5/2ml 16000 18031 0.2ml、0.5ml
16M0007 Angle Rotor 18×1.5/2ml 15000 18866 0.2ml、0.5ml
16M0008 Angle Rotor 24×1.5/2ml 14000 19722 0.2ml、0.5ml
16M0090 Angle Rotor 36×1.5/2ml 13000 19159 0.2ml、0.5ml
16M0091 Angle Rotor 48×1.5/2ml 13000 19159 0.2ml、0.5ml
16M0085 Angle Rotor 40×0.2ml 16000 21695
16M0086 Angle Rotor 24×0.5ml 16000 20035
16M0087 Angle Rotor 30×0.5ml 13000 15210
16M0088 Angle Rotor 40×0.5ml 13000 15267
16M0089 Angle Rotor 4×8×0.2ml 13000 11941
16M0009 Angle Rotor 10×5ml 14000 15339 1.5ml
16M00010 Angle Rotor 8×15ml(▲) 12000 15294
16M00011 Angle Rotor 8×15ml(●) 12000 15294
16M00012 Angle Rotor 6×50ml(▲) 11000 13798
16M00013 Angle Rotor 6×50ml(Round/Flat) 11000 13798
16M00022 Swing Rotor 4×100ml 4000 2540

Please contact us to get shipping cost.
