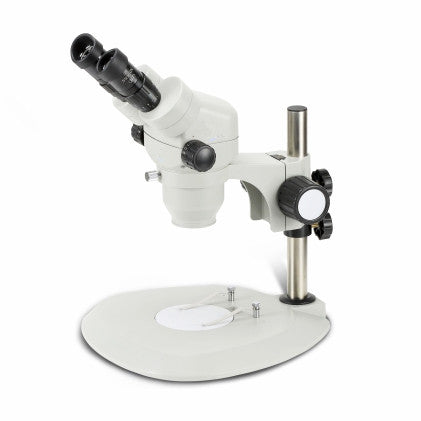

stereomicroscope

The FUZS45 stereomicroscope uses an excellent infinite optical system to provide outstanding optical performance. The streamlined design concept and compact and stable high rigidity body fully reflect the anti vibration requirements of microscopic operations. By observing objects from different angles to create a sense of three dimensionality and changing the distance between the intermediate mirror groups to produce magnification changes, upright magnified three-dimensional spatial images can be generated when observing targets in many fields such as life sciences, mineralogy, archaeology, textiles, and electronics industry. This can be applied to research institutes, universities, medical and health, inspection and quarantine, agriculture, animal husbandry, and dairy industries.

Features:

1 Optical system: Excellent infinite chromatic aberration correction optical system

2 Magnification: Total magnification 7X~45X (standard configuration), expandable maximum total magnification 270X；

3 Eyepieces: SWH 10X high eye point ultra wide angle eyepiece, field of view radius 23mm, optional with teaching pointer

4 tube group: tilted 45 °, main head rotates 360 °

5 working distance: 110mm

Focusing range: 50mm (100mm for square columns)

7-pupil distance adjustment range (using 10x eyepiece): 52mm~76mm

8 diopter adjustment range: ± 6 diopters

9 bracket and host matching size: φ 76mm

10 column center to bracket center size: 140mm

11 round column size: φ 25mm

12 center workbench diameter: φ 95mm

13 light source: can be equipped with fluorescent lamp transmission lighting (5W), halogen tungsten lamp reflection lighting (6V, 10W adjustable)

Basic Configuration List:

FUZS45 Microscope Body;

Eyepiece: 10x，23mm filed;

Eyepiece tube: standard binocular tube 45°tilt (optional trinocular tube 45°tilt);

visual acuity adjustment range: 1.0x-6.5x;

Working distance: 110mm;

Field of view: diameter 23.0mm;

DZ-030 support combination: lifting and focusing range of 50mm, coarse and fine adjustment coaxial,

LED transmission light source 12V/3W;
