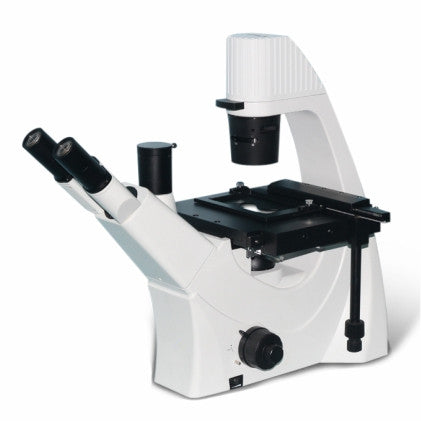

Inverted Biological Microscope

FUZB50i inverted microscope is an inverted biological microscope that uses an excellent infinite optical system to provide outstanding optical performance. The streamlined design concept and compact and stable high rigidity body fully reflect the anti vibration requirements of microscopic operations. The ultra long working distance spotlight system can observe non contaminated cultured cells in high culture dishes or cylindrical flasks. The lighting system fully considers heat dissipation and safety, and the ergonomic design concept makes operation more convenient, comfortable, safe, and spacious. The phase difference device can be attached to the optical path to achieve phase difference microscopy observation. This instrument can be used for microscopic observation of cell tissues, transparent liquid tissues, as well as dynamic microscopic observation of cultured tissues in culture dishes. It can be applied to research institutes, universities, medical and health care, inspection and quarantine, agriculture, animal husbandry, dairy industry and other departments. Configure a research grade high-resolution camera to provide clear microscopic imaging.

Optical system: Excellent infinite chromatic aberration correction optical system;
2. objective lens turntable: 5-position ball internal positioning objective lens turntable;
3. Eyepieces: Large field of view WF10X (Φ 22mm), defocus distance: 10mm;
4.The four eyepiece lens barrel is tilted at a 45 degree angle, with a range of adjustment for binocular pupillary distance of 8~75mm and the eye point height is 400mm from the tabletop;
5. Equipped with flat field achromatic objective lens: 10x/0.25; 20X/0.40； 40x/0.60； Equipped with phase difference long distance flat field achromatic objective lens: 10X/0.25 PHP2, effective focusing stroke of 11mm;
6. long working distance spotlight, working distance 70mm, with plug-in phase difference device;
7. Coarse micro coaxial focusing with locking and limiting devices, micro grid value: 2 μ m;
8. The 8-stage platform is a self-supporting structure, with a double-layer mechanical mobile platform measuring 112mmX79mm. The movable ruler is detachable, avoiding the risk of injury caused by collision with traditional platform supports. The platform is designed with rounded corners to prevent injury;
9. Compatible sample rack:
Suitable for placing 86mm X129.5mm culture dishes, can adapt to round culture dishes with a diameter of 87.5mm,
Suitable for placing 34mm x 77.5mm culture dishes, can adapt to round culture dishes with a diameter of Ø 68.5mm,
Suitable for placing 57mmX82mm culture dishes.
10. phase difference device: plug-in type phase difference spotlight, adjustable center of phase difference ring.
11. LED transmission light source, white cold light source, energy-saving and environmentally friendly, in line with human observation habits, with a constant color temperature of 5-6000k, an average lifespan of over 25000h and adjustable brightness.
12. Research grade high-resolution camera IC1000
Chip model: CMOS Exmor R roller shutter shutter
Chip size: 1/1.8 inch
Pixel resolution: 3072 * 2048 ≈ 6.3M
Pixel size: 2.4 * 2.4um
Exposure time: 0.1ms~15s.

13. Image processing software.

Configuration List:

1. FUZB50i host
2. five-position objective lens turntable (integrated host)
3. Eyepieces 10X 2 pieces
4. One 10X flat field achromatic objective lens
5. One flat field achromatic objective lens 20X
6. One 40X flat field achromatic objective lens
7. Long distance flat field achromatic objective lens 10X 1
8. One differential board
9. Compatible with one 86mm X129.5mm sample rack
10. Compatible with one 34mm X77.5mm sample rack
11. Compatible with one 57mmX82mm sample rack
12. Camera IC1000 1 piece
13.0.5X camera C interface 1
14. One power cord
