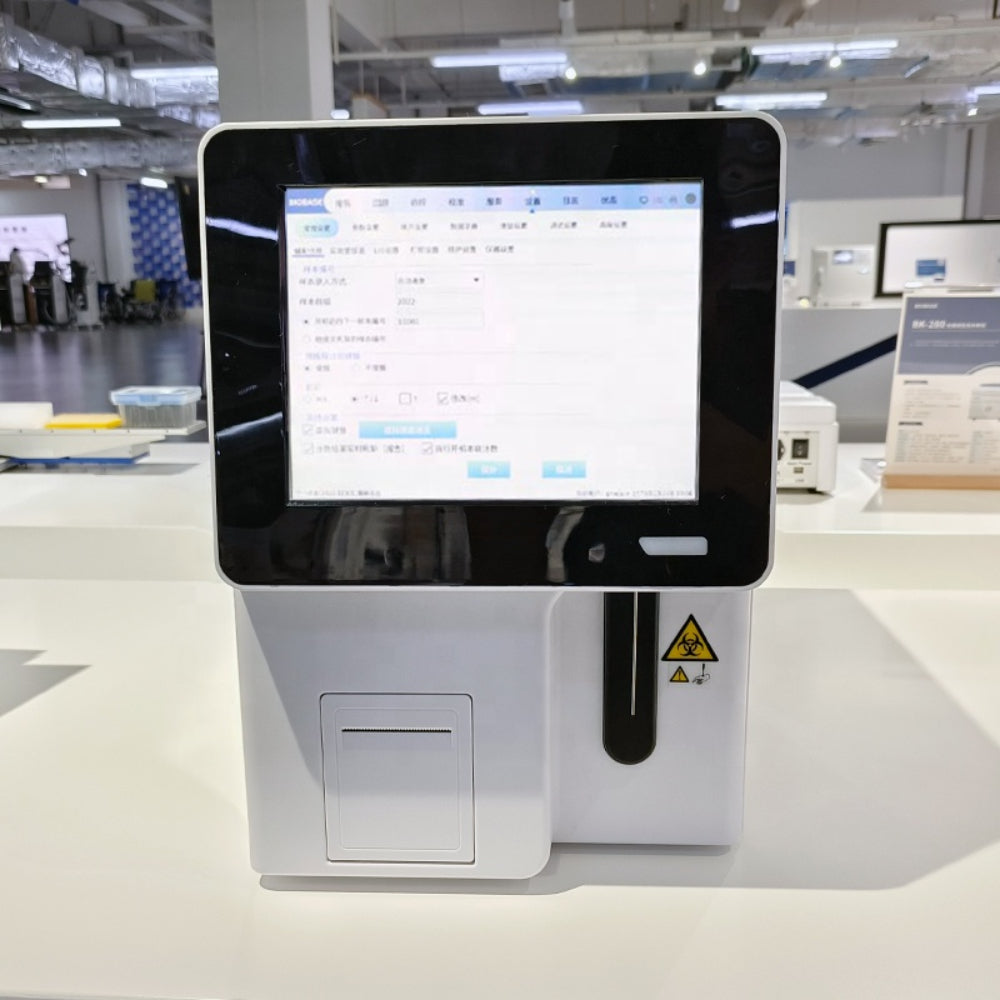

Automatic Hematology Analyzer

Features
9.7-inch color touch LCD screen, easy to operate, display all parameters and histograms on one screen;
Fewer samples are required for testing: whole blood≤10ul, pre-diluted≤20ul;
60 samples/hour.
21 parameters tested + 3 histograms;
It can be turned on continuously for 24 hours;
Automatically clean the sample, counting pool and pipeline after starting up;
Built-in thermal printer, external printer can be connected.
Electrical impedance method, cyanide-free detection of HGB;
Fully intelligent blockage removal and alarm function;
Both automatic calibration and manual calibration are available;
Counting Mode: Venous, capilary, prediluted;
Support LIS system.

Product Specification
Throughput: 60 samples/hour
Principle: Impedance for WBC differentiation and WBC/RBC/PLT count; Colorimetric method for HGB;
Channels: 2
Parameters: 21 parameters(including WBC, Mid#, Lym#, Gran#, Mid%, Lym%, Gran%, RBC, HGB, HCT, MCV, MCH, MCHC,RDW-SD, RDW-CV, PLT, MPV,PDW，PCT, P-LCR, P-LCC);
Histograms: 3 histograms (including WBC, RBC, PLT histograms);
Sample Volume: Whole blood: 10μl, Prediluted: 20μl;
Calibration: Manual, auto calibration;
Printing Model: Auto print, manual print;
LIS: Support Bi-directional LIS;
Reagent: Diluent 20L, Hemolytic agent 500ml, Probe cleaner: 50ml;
Output: Internal printer, support external printer;
Printer paper: 57*30mm;
Interface: 4 USB ports, network port，RS232 serial port.
Storage: 100,000 results with histogram;
Unclog: High voltage burn, reverse high-pressure flush;
Power Supply; 100~240 AC, 50/60Hz, 150VA;
External Size(W*D*H): 295*467*418mm
Packed Size(W*D*H): Instrument: 404*564*616mm; Reagent: 480*480*480mm
Net weight: 19 KG
Gross weight: Instrument:31KG; Reagent:25Kg
