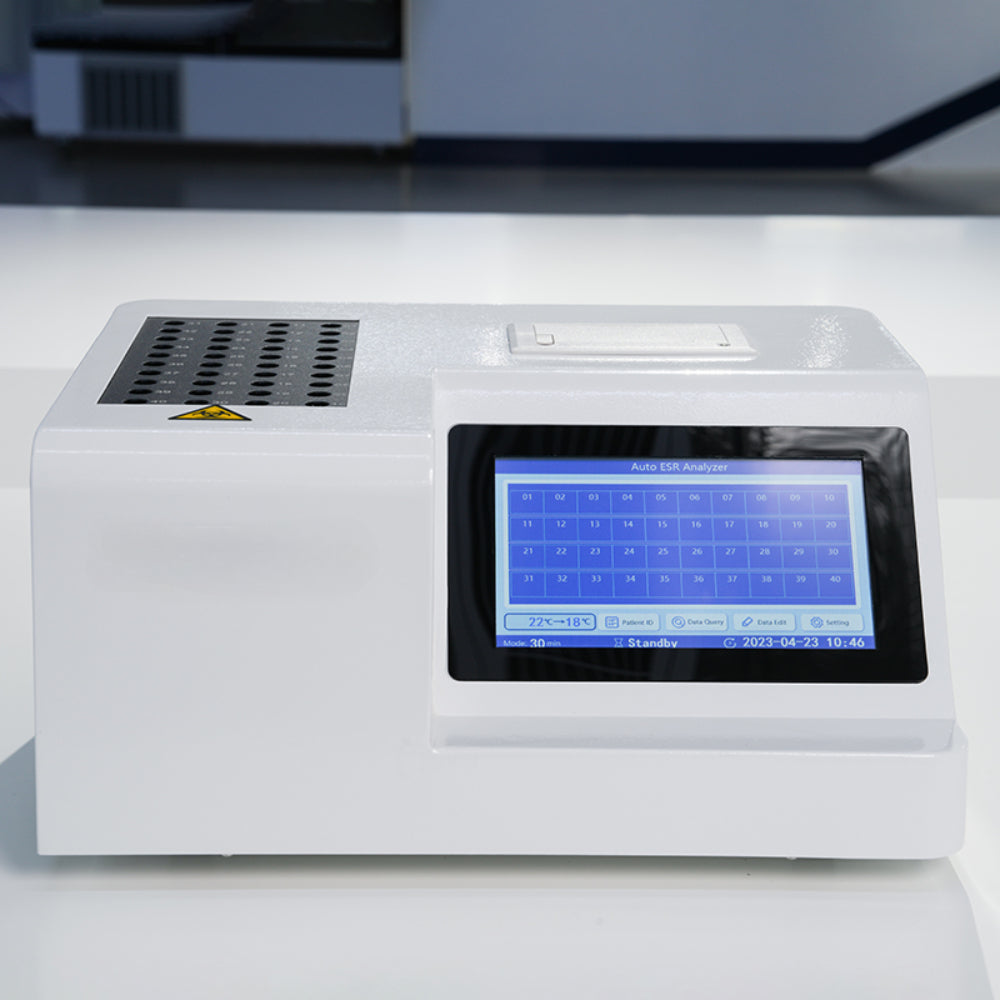

Automatic Erythrocyte Sediment Rate ESR Analyzer

Application:
Applicable to hospital inspection departments, medical laboratories, research institutes, universities etc.

Feature:
1. 7-inch color touch LCD screen, easy to operate, high resolution.
2. 80 samples/hour, rapid detection.
3. Randomly add sample positions for testing at any time.
4. Built-in thermal printer for easy data printing.
5. Power-off save function, automatically save the test results.

Technical Parameters
Measurement Method: Infrared detection
Analysis Result: Westergren ESR value (mm/hour)
Throughput: Maximum 80 tests/hour
Analysis Channels: 40 (load up to 40 samples for analysis at the same time)
Loading Type: Load samples at any time, measure at any time;
Analysis Time: 30 minutes or 60 minutes selectable
Sampling Interval: 3 min;
Measurement Range: 0~120mm/h;
Temperature Compensation: The result is automatically corrected to the result at 18°C;
Result Resolution: 1mm/1h and 1mm/2h;
Blood Level Range: 50mm~64mm;
Result Precision: CV≤2%;
Channel Error: ≤±4mm/h;
Reading Accuracy: 0.2mm;
Printer: Built-in thermal printer;
Power Supply: AC220V or AC110V 50/60Hz.
