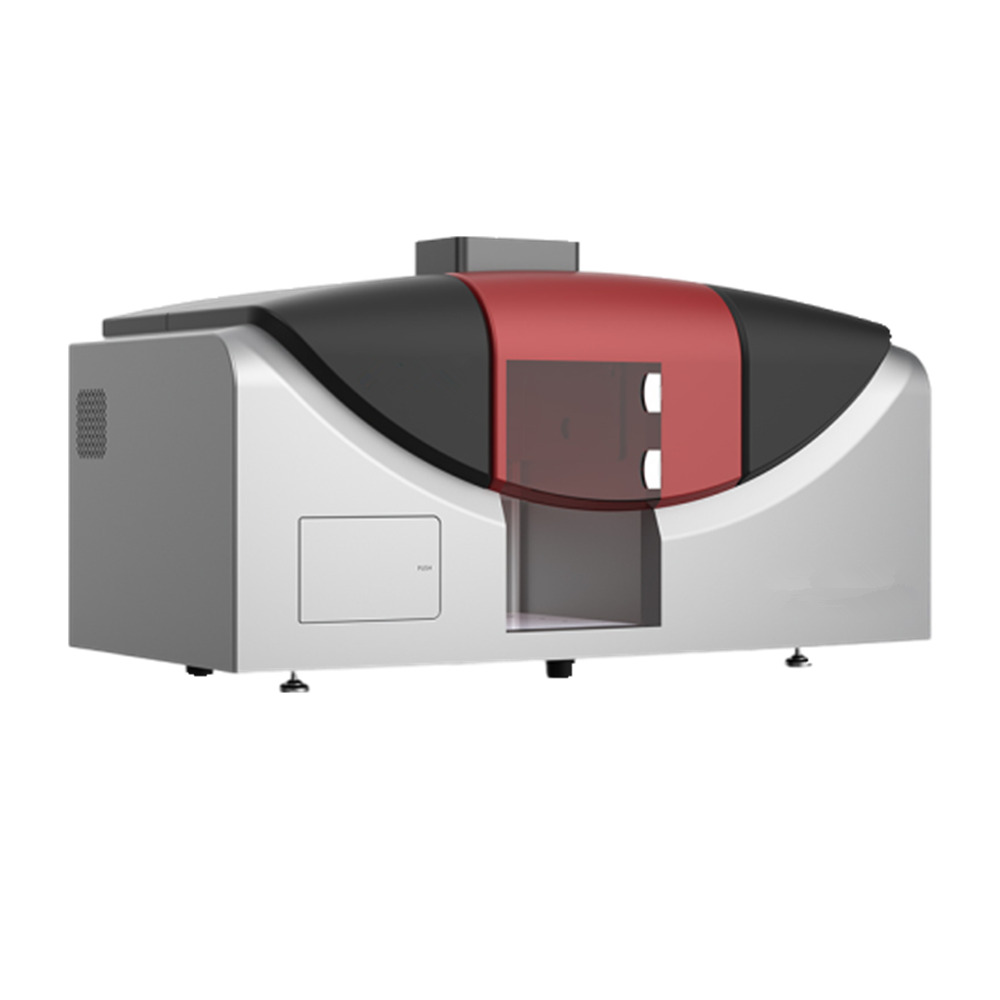

atomic absorption spectrophotometer
atomic absorption spectrophotometer
product features
1, outstanding fully sealed optical system design, with an integrated 20mm aluminum alloy optical installation platform, the selection of high-quality optical devices, the achievement of outstanding optical performance and permanent optical imaging, the instrument is stable and reliable for a long time.
2, Convenient 8 lamp holder design, with automatic rotation/switching function, multiple lamps can be preheated at the same time, and the software automatically switches to improve analysis efficiency.
3, durable metal titanium burner, the angle of the flame burner can be adjusted horizontally when analyzing high-concentration samples, and the height of the flame burner can also be adjusted up and down to obtain test sensitivity.
4, compact automatic double atomization system, the software automatically switches the flame atomizer and graphite furnace atomizer (AA-800FG type), the optional automatic sampler greatly improves the test efficiency, and there is no need to disassemble the automatic sampler when using the flame atomizer.
5, excellent deuterium lamp background correction technology, to achieve ≥ 90 times the correction ability, can obtain accurate and reliable test results.
6, easy-to-use Chinese workstation software, the instrument status is automatically optimized with one key, supporting multi-sample analysis and element determination. Data export in Word and Excel formats is supported, and test data is printed out in report format. GMP audit tracking software can also be selected to realize electronic signature function, user rights management and analysis process tracing. The software meets the audit tracking standard requirements
7, The innovative ABS flame retardant material shell and unique industrial appearance design present an artistic product with a combination of function and aesthetics, changing the appearance of atomic absorption spectrophotometer products.
8, safe gas leakage protection, air pressure protection, ignition protection, flame emergency flameout protection, abnormal flow protection, automatic power-off protection, automatic alarm prompt protection, software and hardware double protection.
9, compliant audit trail software (optional), electronic signature capabilities, user rights management, analysis process traceability, in line with audit trail standards.
10, ultra-long two-year product warranty period, purchase and use worry-free.
Model |
FUZ800FG |
Atomization System |
flame graphite furnace |
optical system |
Czerny-Turner monochromator, imported 1800 strips/mm holographic grating, grating blaze wavelength 250nm |
spectral bandwidth |
0.1nm, 0.2nm, 0.4nm, 0.8nm, 1.6nm, 2.4nm six automatic switching. Bandwidth deviation ≤ 0.02nm |
wavelength allowable error |
±0.1nm |
wavelength repeatability |
≤ 0.05nm |
baseline drift |
≤ 0.002Abs |
baseline noise |
≤ 0.001Abs |
background correction method |
deuterium lamp self-priming |
burner |
all titanium combustion head |
safety protection |
gas leakage protection/air pressure protection/ignition protection/flow anomaly protection |
multi-lamp preheating |
support |
main application areas
environment: detection of harmful substances and heavy metal elements in seawater, river water, wastewater, sludge, soil and floating dust.
medicinal chemistry: detection of pharmaceutical ingredients and composition.
industrial analysis: detection of harmful substances and impurities in industrial products such as metals, minerals, glass, ceramics, IC chips, etc.
biological analysis: detection of biological, plant, food, feed and other biological samples.
oil: detection of oil, petroleum, biodiesel, catalysts, chemical products.
Price is not including shipping. Please inquiry us for shipping cost.
