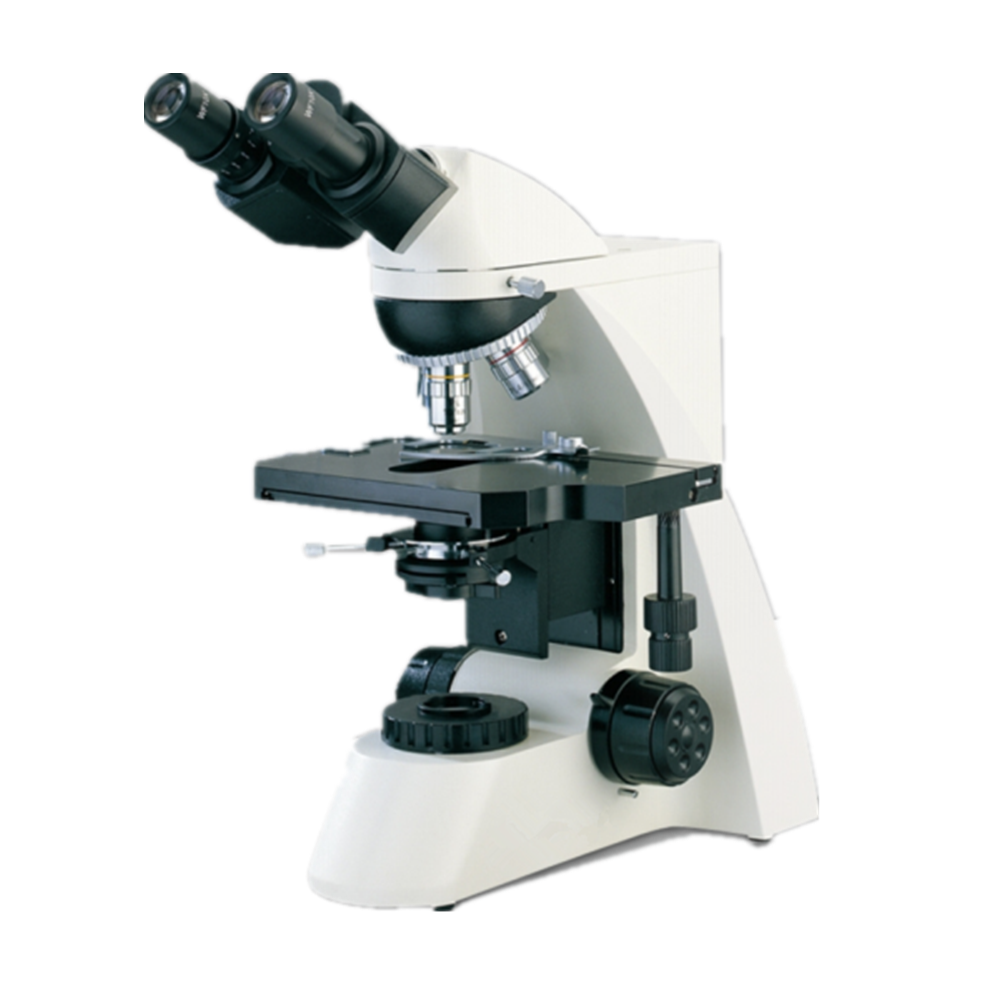

4 flat field achromatic objective lens bright field biocular lens tube Mircroscope FUZB70

The FUZB70 upright microscope is widely used for microscopic observation in industries, agriculture, healthcare, laboratories, school teaching, life science research, and other fields. If you need a clear observation of the solution, FUZB70 is one of the ideal choices. These powerful imaging systems have constant color temperature and waveband LED lighting, high-end optical devices, and calibrated optical path systems, providing you with high-definition microscopic observation effects.

Features:
1. Optical system: Excellent infinite chromatic aberration correction optical system.
2. Objective turntable: 4-position backward tilting ball internal positioning objective turntable. Not forward tilting type, which is convenient for objective conversion.
3. Binocular lens tube, adjustable pupil distance and diopter
4. Equipped with flat field achromatic objective lens: 4x/0.10; 10x/0.25; 40x/0.65 (spring); 100x/1.25 (spring, oil mirror)
5. Coarse and micro coaxial focusing, with locking and limiting devices, micro grid value: 2 μ m
6. The loading platform is a self-supporting structure, which avoids the risk of collision and injury with traditional loading platform brackets. The loading platform is designed with rounded corners to prevent injury; Double layer mechanical mobile platform (size: 210mmX140mm, movement range: 75mmX50mm), adjustable height lifting range ≥ 23mm
7. There is an integrated handle on the back of the body, which is convenient for handling and safe transportation of the microscope
8. LED transmission light source, white cold light source, energy-saving and environmentally friendly, in line with human eye observation habits, color temperature 4000k, lifespan greater than 20000 hours
9. Transmission light Kohler lighting system
10. Abbe condenser N.A.1.25 can be raised and lowered

Configuration:
1.host 1 unit
2. Four postion objective turntable (integrated host)
3. One binocular lens tube
4. Eyepiece 10X 2 pieces
5. One flat field achromatic objective lens 4X
6. One flat field achromatic objective lens 10X
7. One flat field achromatic objective lens 20X
8. One flat field achromatic objective 40X
9. One flat field achromatic objective lens 100X
10. One power cord.
